Project overview

Based on the first version of the Fuzz War by Death by Audio, a seven-gain stage monster nothing related to the current production model Fuzz War II, which has a much more Big muff inspired circuit.

For this project, we designed the Fuzz control as a regular potentiometer, instead of a trimpot like in the original unit. Also, we included in this project a bias control cause we all know how fun is to experiment with starving fuzzes!

Don’t forget to check the additional notes on the Tone stack Section.

Introduction

When talking about the Fuzz War by Death by Audio ™, there is a lot of controversy in the DIY community and the players. Everybody knows that the Fuzz War II is a super dirty Muff-inspired circuit, but there’s not that much information regarding the original version of this saturated and dirty fuzz. That’s why we took on our hands the task of replicating this amazing circuit piece by piece, and after analyzing many units and schematics, here we have the final version of dirty saturated fuzz.

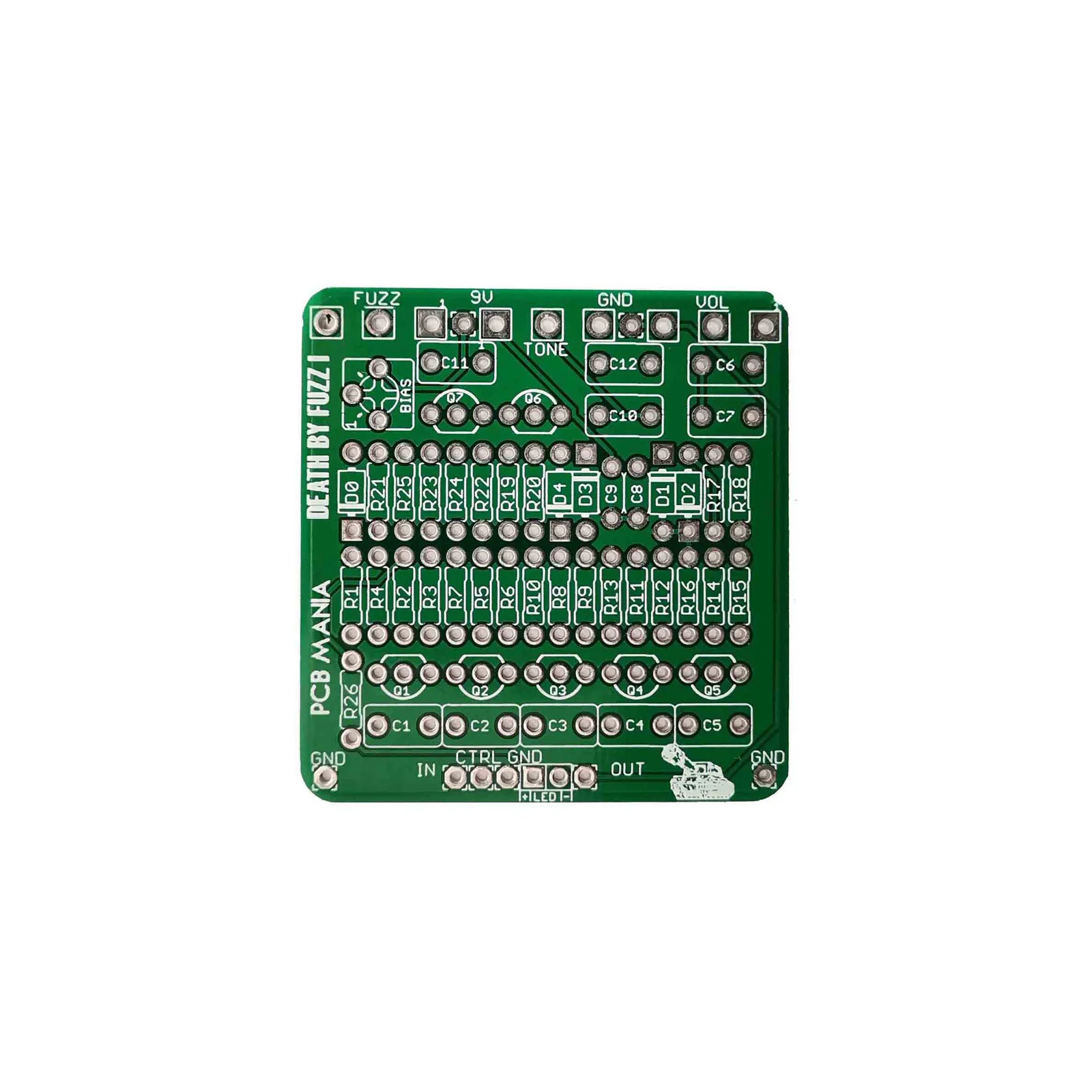

Spoiler alert! No effort spared when giving you the best-sounding projects in your hands. You get the pcb with the matching documents to build our take on the first version that is no longer in production.

By analyzing the schematic you can tell there’s nothing related to a Big Muff but the Tone control. This is a seven-gain stage monster!

Fully saturated fuzz is the main territory of this pedal. So the answer to the question: “Does it doom?” hell yeah!

Also great on bass but we recommend adding a blend board to keep the low end alive.

Controls

• Fuzz
• Volume
• Tone
• Bias (Trimmer)
