*Now also available in a solderless install kit.

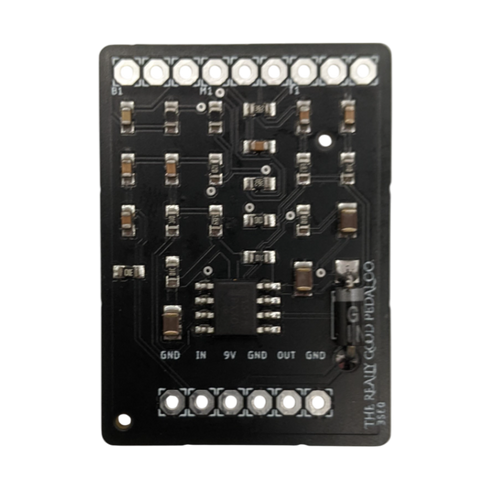

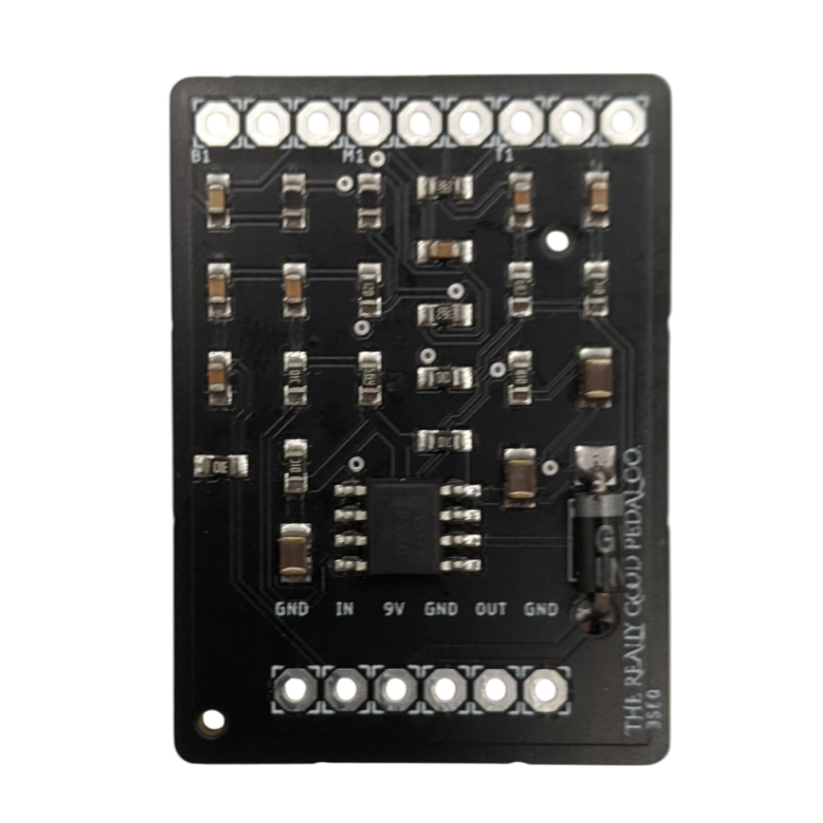

The S3EQ is based on the onboard preamp of the Ernie Ball MusicMan Stingray. This version uses the dual version of the quad opamp we use in The Really Good Onboard Preamp allowing for higher voltage operation and less noise along with long battery life.
This EQ is the perfect upgrade for your Sterling by MusicMan SUB series bass but also works well with every common pickup combo we tried out.
Specs
Power Supply: 9-27V
Current Draw: ~1ma
PCB Size: 36 x 25 x 3mm
Potentiometers Required: 3x B50K. Use pots with centre detents to indicate flat positions on EQ.
Frequency Centers
Bass- 40Hz
Mid - 800Hz
Treble - 4000kHz
Controls
Bass
Mid
Treble
Please note: I do not include a printed version of the manual or use commercial packaging for our products. You'll find a PDF manual linked at the top of every product page. This helps me keep prices down and reduce waste.
